Ensemble E8 DevKit

Get started with the Ensemble E8 DevKit

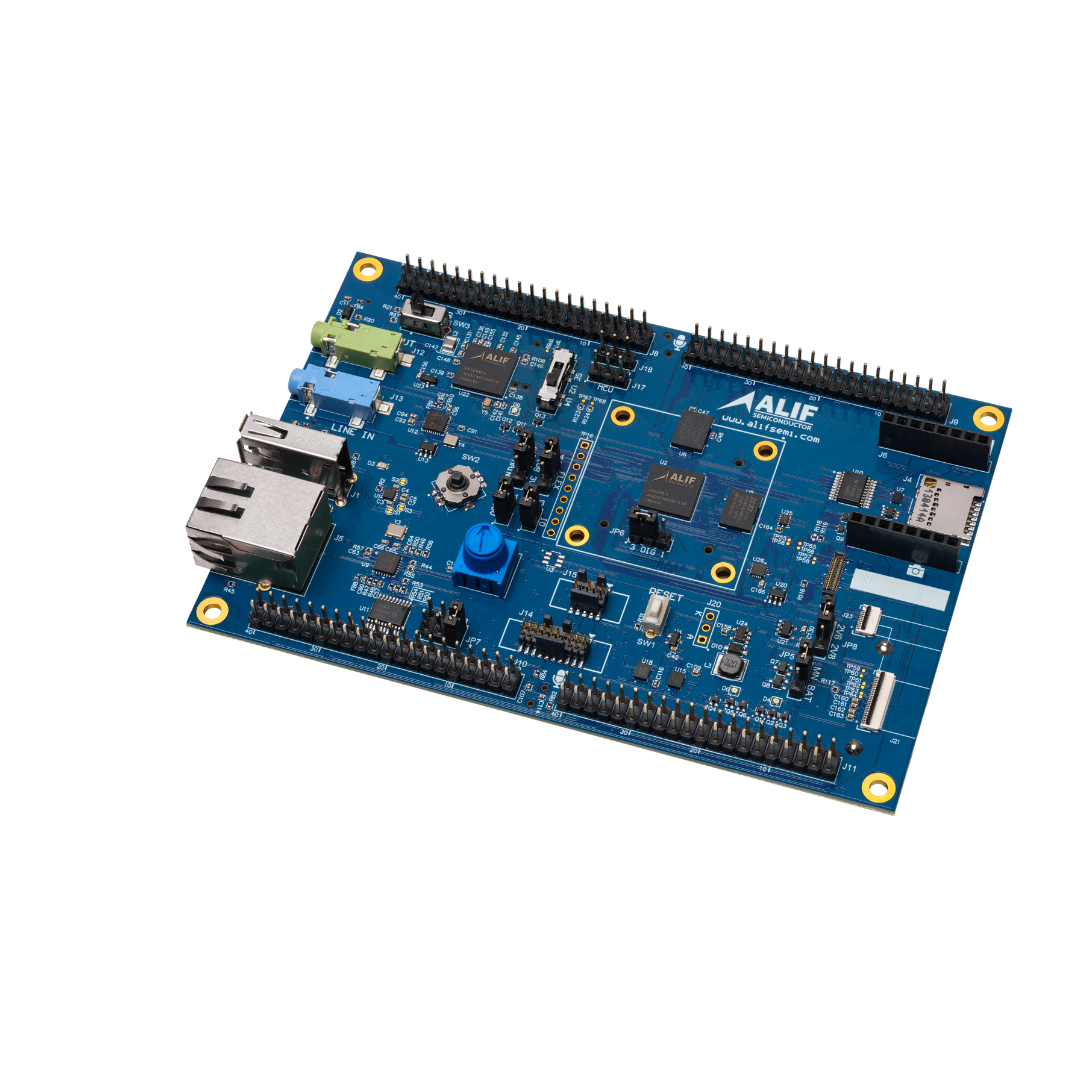

The Ensemble E8 DevKit (DK-E8) is a cost-effective, single-board solution that brings out all signals on the device to easily access pins for power and performance profiling, prototyping, and more. The DevKit can be configured to operate as your choice of the E4, E6, or E8 series MCU devices in the Ensemble family, with superset E8 series device having two Cortex-M55 CPU cores, two Ethos-U55 + one Ethos-U85 neural network processors cores, and two Cortex-A32 MPU cores.

Purchase

Alif

Ensemble Engineering Sample E8 DevKit Quick Start Guide

(v1.0) This user guide shows how to configure and power up your Ensemble E8 DevKit so you are ready to do application development. It also shows how to update the firmware in your Alif chip, how to download the compatible VS Code project template, and shows optional UART connections to the development kit.

Alif Security Toolkit

Quick Start Guide (v3.2) shows how to install the Alif Security Toolkit (SETOOLS) for Ensemble devices and shows some common commands used during application development.

NOTE: Beginning with the V1.107.00 release, the default tools configuration for the target device is the Ensemble E8 device used on the Ensemble E8 DevKit. If you are using any other kit or your own board, you will need to select the correct target device. See Section 4 of the latest Alif Security Toolkit Quick Start Guide for details on different ways to do this.

Alif Security Toolkit: (v1.107.00) for use with the Ensemble devices or evaluation kits. After downloading your Toolkit, be sure to update your board to the same version by running the updateSystemPackage utility.

Quick Start Guide Release Notes Windows Linux MacOS

Alif SE Host Services API Archive

(v1.107.00) This archive contains source code for the Alif SE Host Services API software release.

Ensemble VS Code Project Template

This VS Code project template is for use with Ensemble devices. NOTE: After cloning this template file to a project folder, open up a terminal window in that folder and execute the command “git submodule update -–init”. This will load the board library sub-module.

Access Online

Ensemble E4, E6, E8 Differences From E1, E3, E5, E7 v1.0

(v1.0) This document describes the functional difference between the E4, E6 and E8 devices and the existing E1, E3, E5, and E7 devices. The Ensemble E4, E6, and E8 devices have some functional differences compared to the E1, E3, E5, and E7 devices. This document outlines the items that a designer should be aware of when doing a design for the E4, E6, or E8 devices, and which ones are taken care of when using the Alif-provided Device Family Pack (DFP) drivers.

CMSIS DFP 2.0 Migration Guide Application Note

(v1.0) Alif Semiconductor CMSIS DFP 2.0.0 is an update from the previous 1.3.x version to satisfy the requirements of reorganizing the pack to be compliant with ARM CMSIS latest updates. 2.0.0 does not change any driver APIs, but does add and/or modify a few things that will need existing projects to be updated. Primarily, support for multiple SKUs of Alif Semiconductor devices, support for Board Support as per new ARM CMSIS requirements, addition of standard ARM CMSIS GPIO and other general updates, including support for new Alif Semiconductor devices, are part of this release. This migration guide provides recommendations to users on how to address these changes for current and future designs.

Ensemble E8 DevKit Schematics

This document contains schematics for the DK-E8.

Ensemble E8 DevKit Bill of Materials

This document is the bill of materials for the DK-E8.

Ensemble E4, E6, E8 PCB Layout Guidelines

(v1.0) This app note provides tips and techniques for printed circuit board (PCB) layout for the Alif Ensemble E4, E6, E8 family MCUs and fusion processors. This document will provide PCB guidelines for proper power distribution and decoupling, and signal integrity to ensure a successful PCB design.

Ensemble E8 Databrief

(V0.5) Databrief for the Ensemble E8.

Ensemble E6 Databrief

(V0.5) Databrief for the Ensemble E6.

Ensemble E4 Databrief

(V0.5) Databrief for the Ensemble E4.
